Four-station automatic assembly machine for nasal cannula branches, 2,000 sets per hour. It assembles and bonds the three-way connector, slide sleeve, nose frame and catheters 1 and 2, using external adhesive coating for a uniform, firm bond with ±0.5mm end-face assembly accuracy and automatic feeding.
Technical Parameters · Figures are taken from the product technical documentation and can be customised to your capacity and process.
| Dimensions of the machine (mm) | 5600(L) × 4600(W) × 1700(H) |
|---|---|
| Power supply (V/Hz) | 220V / 50Hz |
| Power (Kw) | 13kW |
| Air source (MPa) | 0.5–0.8MPa |
| Control circuit voltage (DC) | DC24V |
| Noise standard (dB) | ≤75–80dB |
| Operating environment | 0–40°C, humidity 50–70% |
| Air consumption | 12 m³/h |
| Production capacity | 2,000 sets/h |
Send us the product drawing or sample, the target capacity and your current process, and we will reply within 3 working days with a preliminary process assessment and configuration.
The key figure for the Nasal Cannula Automatic Assembly Machine is Production capacity: 2,000 sets/h. Dimensions, power supply, power, air source, noise and operating environment are listed in the technical parameters table on this page.
It belongs to Respiratory & Tube Consumable Equipment. It can run as a stand-alone machine or be linked with other equipment in process order to form an automated production line.
YIMOSEN is the medical equipment brand of HG Tech Co., Ltd, specialising in vacuum blood collection tube production lines, turnkey blood tube projects and automated equipment for respiratory and tube-type medical consumables.
Send us the product drawing or a sample together with the target capacity and your current process, and we will reply within 3 working days with a preliminary process assessment and configuration. You can call us on +86 199 2543 0398, email sales1@yimosenmed.com, or reach us on WeChat or WhatsApp using the QR codes on this page.
Respiratory & Tube Consumable Equipment

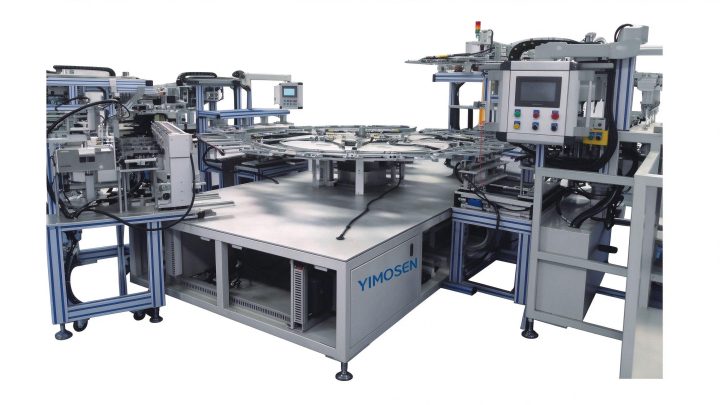

Automatic packaging machine for nasal oxygen tubes: winding, bagging and sealing in one flo…

Automatic assembly machine for the nasal oxygen cannula main catheter: assembles and bonds…

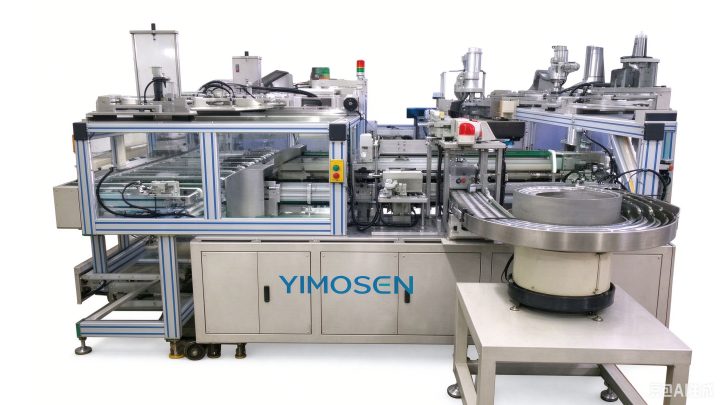

Dedicated equipment for automatic assembly and bonding of extension tubes: the joint and co…
