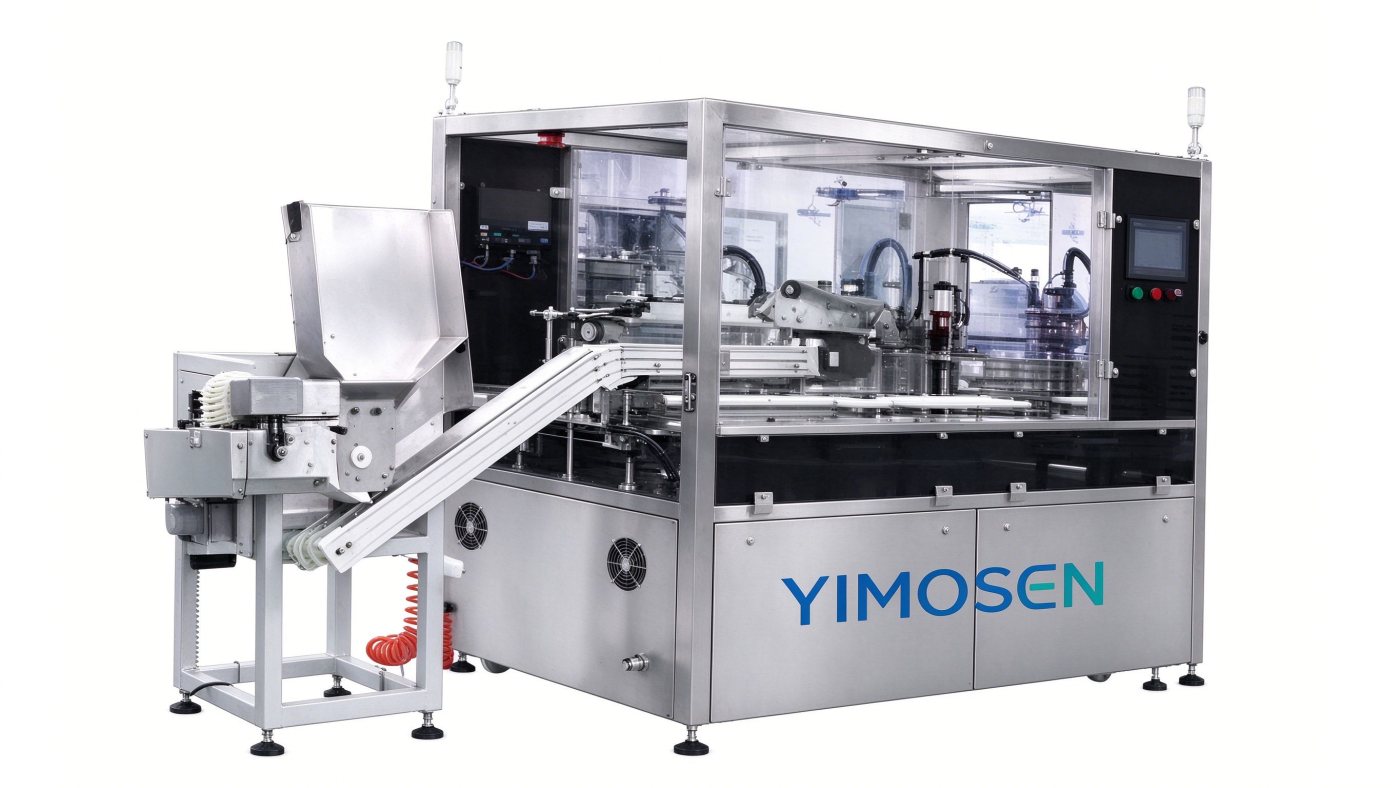

Blood Collection Tube Loading & Cleaning & Adding Liquid Machine

Blood Collection Tube Loading & Cleaning & Adding Liquid Machine - YIMOSEN
Yield: 16,000–20,000 tubes/hour Applicable tube specifications: 13×75mm / 13×100mm glass / PE… Power supply: 380V / 50Hz Power: 2.4kW

Product overview

Tube loading and cleaning with an integrated liquid dosing station: EDTA dosing uses an American FMI adjustable metering pump (±5%, 20µL basis) and the filling station uses a large-capacity syringe pump covering 60-600µL with ±5µL accuracy.

Features and functions

  • Independent silo and vacuum tube picking: no squeezing or friction between tubes, so neither tube body nor label is damaged.
  • Missing-tube and inverted-tube detection keep tube count and orientation correct.
  • Ion air cleaning removes dust and glass particles held by static electricity.
  • Ultra-fine atomizing nozzles spread the reagent evenly across the inner wall.
  • Closed-loop metering pump control with signal feedback on every pump stroke.
  • Automatic nozzle cleaning prevents unstable dosing caused by crystallised needles.
  • The filling station uses a large-capacity syringe pump covering 60-600µL, with the dosage set on the touch screen and ±5µL accuracy.
  • The EDTA dosing station uses an American FMI adjustable metering pump with ±5% accuracy (20µL basis).

Technical parameters

Technical Parameters · Figures are taken from the product technical documentation and can be customised to your capacity and process.

Blood Collection Tube Loading & Cleaning & Adding Liquid Machine Technical parameters
Yield16,000–20,000 tubes/hour
Applicable tube specifications13×75mm / 13×100mm glass / PET tubes
Power supply380V / 50Hz
Power2.4kW
Dimensions (L×W×H)2.0m × 1.35m × 1.9m
Weight500kg
Filling volume60–600µL, ±5µL accuracy
Dosing accuracy±5% (US FMI metering pump, 20µL basis)

Applications and processes

EDTA dosing Heparin dosing Soluble reagent dosing

Request a quote for the Blood Collection Tube Loading & Cleaning & Adding Liquid Machine

Send us the product drawing or sample, the target capacity and your current process, and we will reply within 3 working days with a preliminary process assessment and configuration.

YIMOSEN WeChat QR code
YIMOSEN WhatsApp QR code

Frequently asked questions

What is the capacity of the Blood Collection Tube Loading & Cleaning & Adding Liquid Machine and what are its main specifications?

The key figure for the Blood Collection Tube Loading & Cleaning & Adding Liquid Machine is Yield: 16,000–20,000 tubes/hour. Dimensions, power supply, power, air source, noise and operating environment are listed in the technical parameters table on this page.

Which product family does the Blood Collection Tube Loading & Cleaning & Adding Liquid Machine belong to, and can it be linked into a line?

It belongs to Blood Collection Tube Line. It can run as a stand-alone machine or be linked with other equipment in process order to form an automated production line.

Who is YIMOSEN?

YIMOSEN is the medical equipment brand of HG Tech Co., Ltd, specialising in vacuum blood collection tube production lines, turnkey blood tube projects and automated equipment for respiratory and tube-type medical consumables.

How do I get a quotation and selection advice for the Blood Collection Tube Loading & Cleaning & Adding Liquid Machine?

Send us the product drawing or a sample together with the target capacity and your current process, and we will reply within 3 working days with a preliminary process assessment and configuration. You can call us on +86 199 2543 0398, email sales1@yimosenmed.com, or reach us on WeChat or WhatsApp using the QR codes on this page.
