Number of modules：1 组 / 2 组 / 3 组 / 4 组 / N 组
Packaging speed (bags/hour)：1600 / 3200 / 4800 / 6400 / 1…
Total power (kW)：2.5 / 5 / 7.5 / 10 / 2.5×N
Input power supply：220V / 50Hz
Product overview

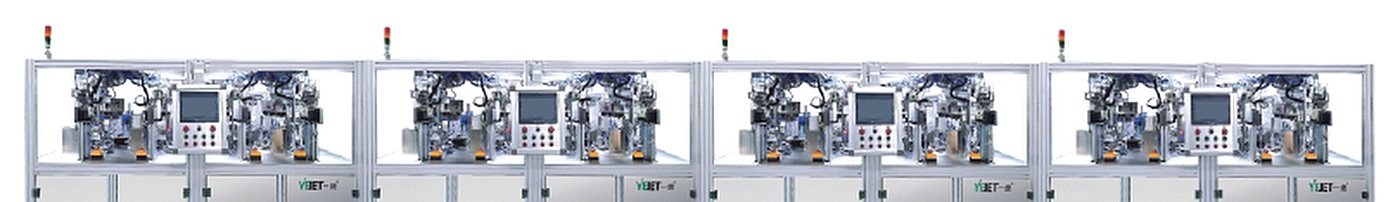

Single blade blood collection needle / venous needle packaging machine that replaces the manual mechanical motion with fully automatic operation, rotating the needle tube one and a half to two and a half turns into the bag. One operator can run several machines. National invention patent granted.
Features and functions
- Rotates the blood collection needle tube one and a half to two and a half turns into the bag shape, closely following the manual operating principle.
- Completes the transformation from manual mechanical action to automatic machine operation; one operator can run multiple machines.
- Saving labour and effort, high precision and high efficiency.
- Easy to use and simple to operate; exquisite appearance, easy installation and light weight.
- Energy saving and environmentally friendly, with low running cost.
- High safety, does not damage the product.
- Parts in contact with the product are uniformly made of 304 stainless steel; other parts are aluminium alloy with surface oxidation treatment, which will not contaminate the products and clean areas.
- The first of its kind in China and leading the world level, with a national invention patent granted.
Technical parameters
Technical Parameters · Figures are taken from the product technical documentation and can be customised to your capacity and process.
| Number of modules模组数量 | 1 组 / 2 组 / 3 组 / 4 组 / N 组 |
|---|---|
| Packaging speed (bags/hour)单机包装速度（包/小时） | 1600 / 3200 / 4800 / 6400 / 1600×N |
| Total power (kW)全机功率（kW） | 2.5 / 5 / 7.5 / 10 / 2.5×N |
| Input power supply输入电源 | 220V / 50Hz |
| Machine dimensions (mm)机器尺寸（长×宽×高，mm） | 1400×1100×1750 / 2800×1100×1750 / 4200×1100×1750 / 5600×1100×1750 / 1400N×1100×1750 |
| Air pressure (MPa)气压（MPa） | 0.5–0.8MPa |
| Machine weight (KG)机器重量（KG，毛重） | 300 / 600 / 900 / 1200 / 1500 |
Applications and processes
Single blade blood collection needle packaging
Venous needle packaging
Needle type product packaging
Request a quote for the Single Blade Blood Collection Needle / Venous Needle Packaging Machine
Send us the product drawing or sample, the target capacity and your current process, and we will reply within 3 working days with a preliminary process assessment and configuration.
