One line that runs both coagulant and anticoagulant tubes: labeling, tube loading and cleaning, coagulant and anticoagulant spraying, sodium citrate filling, drying, capping, vacuum plugging and tray loading. 16,000-20,000 tubes per hour with two operators; spraying and filling accuracy ±5%.
Technical Parameters · Figures are taken from the product technical documentation and can be customised to your capacity and process.
| Production efficiency | 16,000–20,000 tubes/hour (depending on reagent and vacuum level) |
|---|---|
| Whole line operation personnel | 2 operators |
| Applicable tube specifications | 13mm×75mm and 100mm universal |
| Test tube material | PET / glass tubes |
| Coagulant spraying | 5 heads, 10–35µL standard dose, ±5% (20µL basis, weighed as water) |
| Anticoagulant spraying | 5 heads (US FMI metering pump), 5–45µL standard dose, ±5% (20µL basis) |
| Sodium citrate filling | 5 heads, 60–600µL fill volume, ±5µL accuracy |
| Vacuum value range | -99.9kPa ~ 0 |
| Dimensions (L×W×H) | 9m × 2.2m × 2.2m (including vibratory bowl and labeling machine) |
| Power supply | 380V / 50Hz |
| Power | 25kW |
| Clean compressed air pressure | 0.6–0.8MPa |
| Gas consumption | <600L/min |
| Weight | 2000kg |
| Noise level | ≤75dB |
Automatic labeling → labeling CCD inspection
Automatic tube loading → quantity / orientation inspection
Test tube ion air cleaning (static removal)
Coagulant / EDTA spraying
Sodium citrate filling
Drying stations
Automatic capping
Automatic vacuum plugging
Automatic foam-tray loading
Tray loading
Send us the product drawing or sample, the target capacity and your current process, and we will reply within 3 working days with a preliminary process assessment and configuration.
The key figure for the Vacuum Blood Collection Tube Production Line - Coagulation & Anticoagulation is Production efficiency: 16,000–20,000 tubes/hour (depending on reagent and vacuum level). Dimensions, power supply, power, air source, noise and operating environment are listed in the technical parameters table on this page.
It belongs to Turnkey Solutions. It can run as a stand-alone machine or be linked with other equipment in process order to form an automated production line.
YIMOSEN is the medical equipment brand of HG Tech Co., Ltd, specialising in vacuum blood collection tube production lines, turnkey blood tube projects and automated equipment for respiratory and tube-type medical consumables.
Send us the product drawing or a sample together with the target capacity and your current process, and we will reply within 3 working days with a preliminary process assessment and configuration. You can call us on +86 199 2543 0398, email sales1@yimosenmed.com, or reach us on WeChat or WhatsApp using the QR codes on this page.
Turnkey Solutions

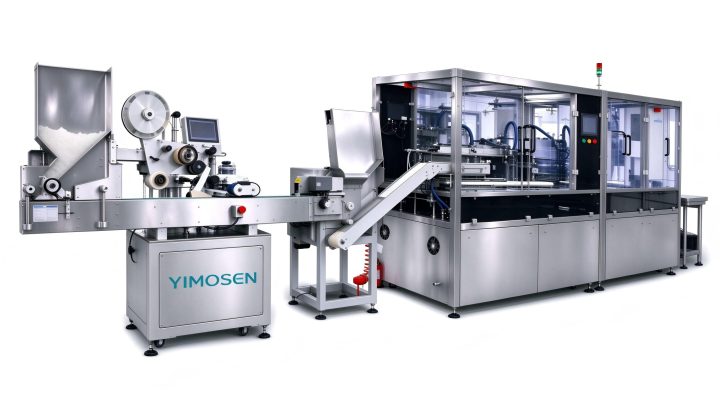

A complete line for anticoagulant blood collection tubes such as EDTA, heparin and sodium c…

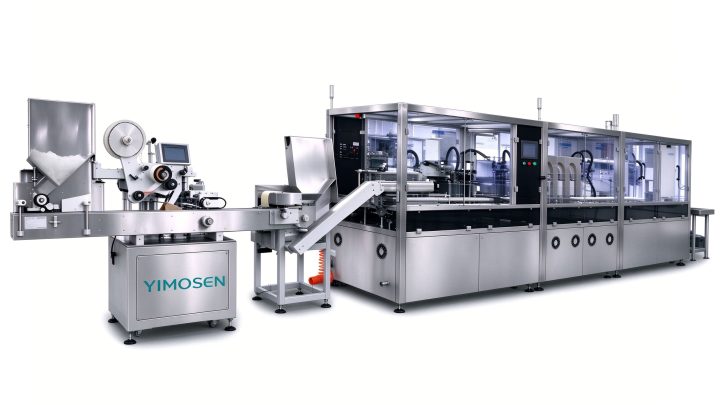

A complete line for serum clot activator tubes and clot activator + separating gel tubes. C…
