Product overview

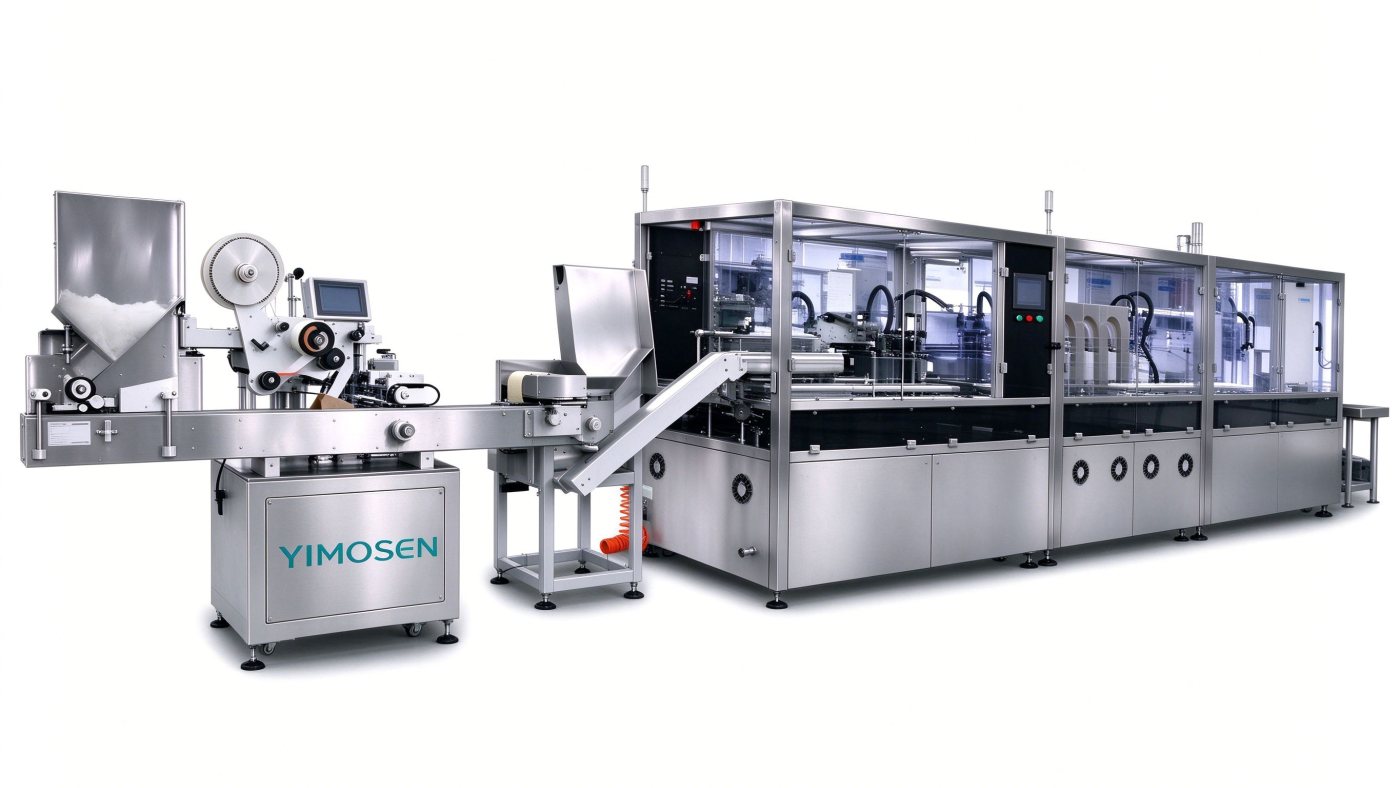

A complete line for serum clot activator tubes and clot activator + separating gel tubes. Coagulant spraying 5 heads, 10-35µL (±5%), 4 drying stations with PTC ceramic heaters. 16,000-20,000 tubes per hour with two operators.

Features and functions

  • Coagulant spraying: ceramic metering pump with ultra-fine atomizing nozzles, 5 heads, 10-35µL, ±5% (20µL basis, weighed as water), spreading reagent evenly over the inner wall.
  • Mechanical stirring avoids the rotor deviation risk of magnetic stirring.
  • Drying: 4 stations with PTC ceramic heaters, pollution-free and durable; constant-temperature heating with protection; air is filtered directly so dust cannot enter the tubes.
  • Station interlock: the coagulant and drying stations are interlocked so reagent cannot run to the bottom of the tube during a long stop and dry unevenly.
  • Motor driven: more stable than pneumatic actuation, and position parameters can be recalled directly (for example plain clot activator tubes versus separating gel tubes), making changeover faster.
  • Automatic nozzle cleaning and low-level alarms reduce downtime and rejects.

Technical parameters

Technical Parameters · Figures are taken from the product technical documentation and can be customised to your capacity and process.

Vacuum Blood Collection Tube Production Line - Coagulation Technical parameters
Production efficiency16,000–20,000 tubes/hour (depending on reagent and vacuum level)
Whole line operation personnel2 operators
Applicable tube specifications13mm×75mm and 100mm universal
Test tube materialPET / glass tubes
Coagulant spraying5 heads, 10–35µL standard dose, ±5% (20µL basis, weighed as water)
Vacuum value range-99.9kPa ~ 0
Dimensions (L×W×H)9m × 2.2m × 2.2m (including vibratory bowl and labeling machine)
Power supplyAC380V±10% (three-phase five-wire), 50/60Hz
Power22kW
Clean compressed air pressure0.6–0.8MPa
Gas consumption<600L/min
Weight1800kg
Noise level≤75dB

Applications and processes

Serum clot activator tubes Clot activator + separating gel tubes (gel added by a separate machine) Plain clot activator tubes

Request a quote for the Vacuum Blood Collection Tube Production Line - Coagulation

Send us the product drawing or sample, the target capacity and your current process, and we will reply within 3 working days with a preliminary process assessment and configuration.

YIMOSEN WeChat QR code
YIMOSEN WhatsApp QR code

Frequently asked questions

What is the capacity of the Vacuum Blood Collection Tube Production Line - Coagulation and what are its main specifications?

The key figure for the Vacuum Blood Collection Tube Production Line - Coagulation is Production efficiency: 16,000–20,000 tubes/hour (depending on reagent and vacuum level). Dimensions, power supply, power, air source, noise and operating environment are listed in the technical parameters table on this page.

Which product family does the Vacuum Blood Collection Tube Production Line - Coagulation belong to, and can it be linked into a line?

It belongs to Turnkey Solutions. It can run as a stand-alone machine or be linked with other equipment in process order to form an automated production line.

Who is YIMOSEN?

YIMOSEN is the medical equipment brand of HG Tech Co., Ltd, specialising in vacuum blood collection tube production lines, turnkey blood tube projects and automated equipment for respiratory and tube-type medical consumables.

How do I get a quotation and selection advice for the Vacuum Blood Collection Tube Production Line - Coagulation?

Send us the product drawing or a sample together with the target capacity and your current process, and we will reply within 3 working days with a preliminary process assessment and configuration. You can call us on +86 199 2543 0398, email sales1@yimosenmed.com, or reach us on WeChat or WhatsApp using the QR codes on this page.
