Model：WZD13 / WZD16 / WZD20
Applicable cover type：φ13 / φ16 / φ20
Production capacity：不低于 150 只/分钟，最高 220 只/分钟
Qualification rate：≥99.9%
Product overview

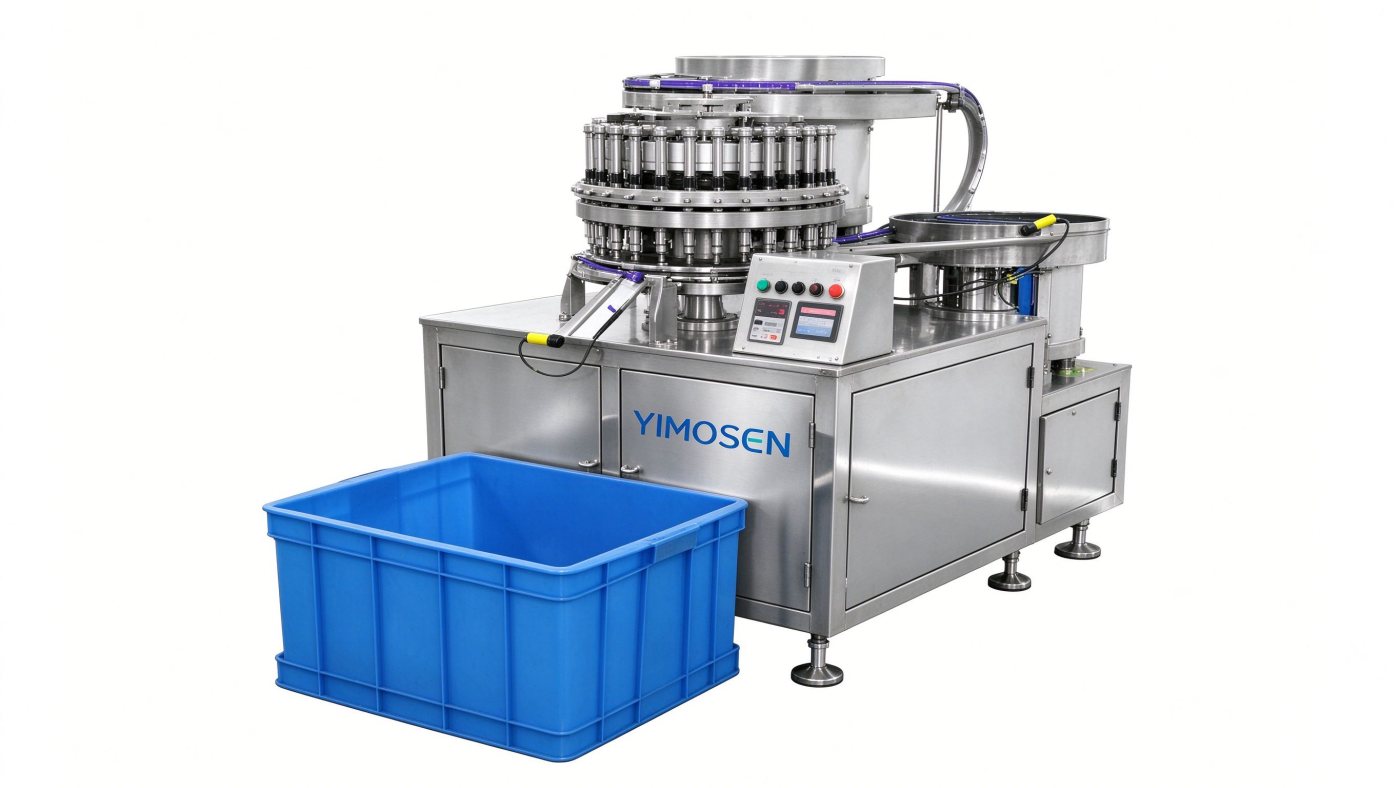

Assembles caps and rubber stoppers for blood collection tubes. Single-channel model: production capacity not less than 150 pieces/minute, up to 220 pieces/minute, qualification rate ≥99.9%, applicable cap types φ13/φ16/φ20, electromagnet vibration groove, total power 2.5kW.
Features and functions
- Models cover WZD13 / WZD16 / WZD20, applicable cap types φ13 / φ16 / φ20.
- Production capacity not less than 150 pieces/minute, up to 220 pieces/minute.
- Qualification rate ≥99.9% with a low defect rate.
- Electromagnet vibration groove gives stable feeding.
- Frequency converter adjustable up to 50Hz, so the cycle can match the line.
- Power supply 220V (380V for the vacuum pump), total power 2.5kW.
Technical parameters
Technical Parameters · Figures are taken from the product technical documentation and can be customised to your capacity and process.
| Model机型 | WZD13 / WZD16 / WZD20 |
|---|---|
| Applicable cover type适用盖型 | φ13 / φ16 / φ20 |
| Production capacity生产能力 | 不低于 150 只/分钟，最高 220 只/分钟 |
| Qualification rate合格率 | ≥99.9% |
| Vibration groove type振槽型式 | 电磁铁 |
| Overall dimensions外形尺寸 | 1.1m × 1.1m × 1.26m |
| Weight重量 | 400kg |
| Number of plugs插头数量 | 28 只 |
| Frequency converter变频器 | 随意调整（最大 50Hz） |
| Total power总功率 | 2.5kW |
| Power supply电源 | 220V（380V，真空泵） |
Applications and processes
Cap and stopper assembly
13/16 upper and lower pressure caps
Consumable production
Request a quote for the Cap & Rubber Stopper Assembling Machine - Single Channel
Send us the product drawing or sample, the target capacity and your current process, and we will reply within 3 working days with a preliminary process assessment and configuration.
